자신있게 권해드립니다.

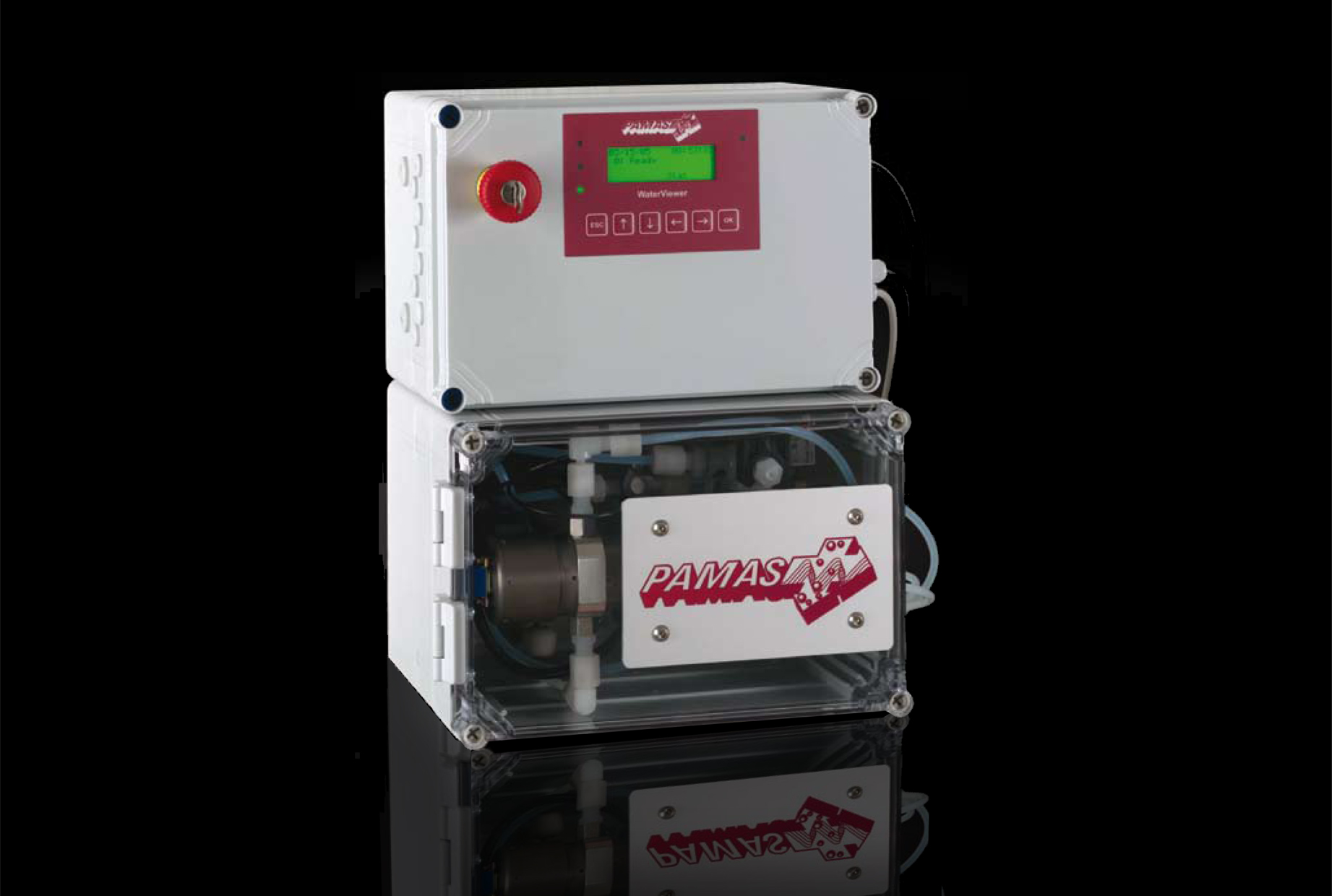

PAMAS Waterviewer
 분류 : 입자계수기
 상품명 : PAMAS Waterviewer
 상품코드 : WaterViewer
 간략설명 : 수질분석의 온라인 측정장비
 제조사 : PAMAS
 제공방식 : 견적후발주
제품상세 정보
블릿아이콘 특징
    ◇ Programming capabilities make the system as versatile as a PLC
    ◇ True single particle counting
    ◇ Fully automated operation
    ◇ DC4-20mA/RS232C/RS485/Modbus Fiber Optic communication port
    ◇ Particle concentration from 0 up to 200,000 p/ml
    ◇ Different dynamic range sensors available
    ◇ System easily connected to analog and digital devices
    ◇ Optional: Networking capabilites
    Expandable to 8 - 32 waterlines using automatic multiplexer unit
    Automated analog and digital I/O
    Signal light for status and alarm

블릿아이콘 규격
    ◇ Light source: Laser Diode
    ◇ Resolution: 8-9% at 3um, 4-5% at 10um
    ◇ Size channel: 8
    ◇ Housing: IP66
    ◇ Pressure range: 0.5-4 bar
    ◇ Dimension: 300(W) x 400(H) x 242(D) mm - Single water line
    ◇ Weight: approx. 11 kg
