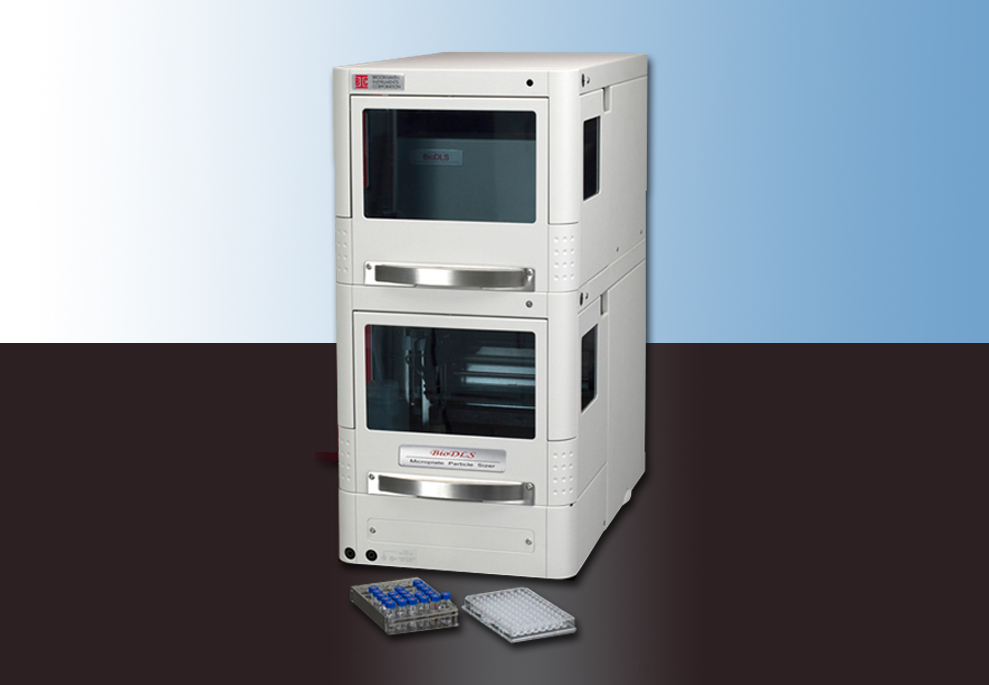

Brookhaven BioDLS
|
 분류 : 입도분석기 |
|
| 상품명 : Brookhaven BioDLS |
|
| 상품코드 : BioDLS |
|
| 간략설명 : : Hydrodynamic radius(RH) 0.5nm - 3㎛, sample-dependent |
|
| 제조사 : Brookhaven |
|
| 제공방식 : 견적후발주 |
|
|
| 제품상세 정보 |
 특징
◇ Hydrodynamic
Radius from 0.5nm to 3um by dynamic light scattering.
◇ Extreme
reproducibility and reliability.
◇ Up to 768 unattended measurements.
◇
Super low sample volume. 2uL fresh sample, recoverable.
◇ Standard well plate
and vials, mix & match.
◇ Complete biocompatible parts.
◇ Sampling
sequence by column or row, auto-prop system compatible.
◇ Integrated,
independent temperature control for sample tray and cell
◇ High throughput,
36 samples/hr.
◇ Perform experiments with no consumable costs.
◇ Detect
aggregation at its onset
◇ Analyze samples without dilution.
◇ Use without
chemical modification of substrates.
◇ Minimize toxic chemical exposure with
robotics.
◇ Interpret data using established theory.
|
규격
◇ 분자량 : 0.4kDa ~
20 MDa, sample-dependent.
◇ 샘플농도 : 0.1~100 mg/mL, sample-dependent.
◇ Flow
Cell 온도 : 4 ℃ ~ 90 ℃
◇ 저장 챔버 온도 : 실온 ~ 4 ℃, optional
◇ 레이저 : 35mW @635nm
standard.
30mW @850nm, optional variable, output power stabilized
◇
산란각 : 90 °
◇ 검출기 : APD(Avalanche Photo Diode) Detector
◇ Correlator :
Brookhaven TurboCorr, Multi-τ research grade with 512 channels,
covering
the equivalent of 107 Linearly spaced channels,
100% efficiency, real time operation over the entire delay-time range.
◇ 컴퓨터
인터페이스 : USB 2.0 & 1.1
◇ 시스템 소프트웨어 : Windows XP and Vista compatible
◇
정밀도 : 1% typically, depending on concentration and the size distribution
◇
데이터 : Average size & size distribution width
Lognormal
fit
Multimodal size distribution
◇ 크기 & 무게:
300(W)X510(D)X630(H)mm, 28kg.(without storage cooler
option)
300(W)X575(D)X630(H)mm, 30kg.(with storage cooler option)
◇
주변온도 : 10 ℃ ~ 75 ℃ |
|
|
|
|
