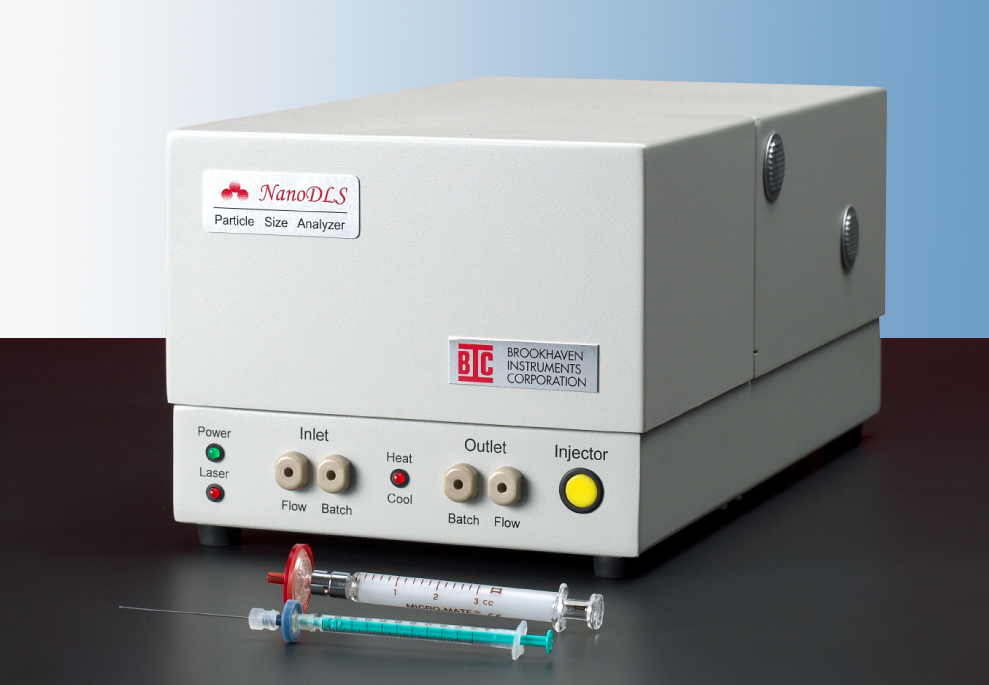

Brookhaven NanoDLS
 분류 : 입도분석기
 상품명 : Brookhaven NanoDLS
 상품코드 : NanoDLS
 간략설명 : Automatic Continuous Online Sizing (ACOS).
 제조사 : Brookhaven
 제공방식 : 견적후발주
제품상세 정보
블릿아이콘 특징
    ◇ Hydrodynamic Radius(RH) measurement using dynamic light scattering(DLS).
    ◇ Automatic Continuous Online Sizing (ACOS).
    ◇ Biological compatible sample cell and tubing.
    ◇ Automatic sampling and flushing.
    ◇ Continuous size measurement for SEC/GPC/ASEC.

블릿아이콘 규격
    ◇ 샘플농도 : 0.1~100 mg/mL, sample-dependent.
    ◇ 측정 정밀도 : 1% typically.
    ◇ 온도 : 5 ℃ ~ 90 ℃
    ◇ 레이저 : variable up to 35mW @635nm
    ◇ 산란각 : 90 °
    ◇ 검출기 : APD(Avalanche Photo Diode) Detector
    ◇ Correlator : Brookhaven TurboCorr, Multi-τ research grade with 512 channels,
    covering the equivalent of 107 Linearly spaced channels,
    100% efficiency, real time operation over the entire delay-time range.
    ◇ 컴퓨터 인터페이스 : USB 2.0 & 1.1
    ◇ Fittings : HPLC Inlet/Outlet on front panel. Two sets for batch and flow modes.
    ◇ 압력범위 : up to 200bar (2940psi)
    ◇ Analog Output : 4 standard
    ◇ Dimension & Weight : 210(W)X380(D)X180(H)mm, 5.8kg.
    ◇ 주변온도 : 10 ℃ ~ 75 ℃
    ◇ 전원 : 100/115/220/240VAC, 50/60Hz, 45 watts max.
    ◇ 측정 모드 : software selectable
